Electric 40W 3000ml Industrial Rotovap Machine

Name: Electric 40W 3000ml Industrial Rotovap Machine
Brand: Lanphan
Price: 935.00 USD

Wholesale Electric 40W 3000ml Industrial Rotovap Machine from china suppliers

Place of Origin : Henan, China

Brand Name : Lanphan

Certification : CE

Supply Ability : 1000 Set/Sets per Month

Packaging Details : price of industrial evaporator: carton or wooden case package, customized package is available.

MOQ : 1 - 2 Units

Price : $935.00

Applicable Industries : Manufacturing Plant, Machinery Repair Shops, Home Use, Food Shop, Energy & Mining

After Warranty Service : Video technical support, Online support

Local Service Location : United States

Showroom Location : United States

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : Ordinary Product

Warranty of core components : 1 YEAR

Core Components : Bearing, Gearbox, Motor, Gear

Condition : New

Power Source : Electric

Process : Vacuum Distillation

Voltage : 220V/110V

Power(W) : 40W

Dimension(L*W*H) : 1000*460*460mm

Weight : 38kg

Warranty : 1 YEAR

After-sales Service Provided : Online support

Key Selling Points : High Productivity

Name : price of industrial evaporator

Rotating Speed : 0-120rpm

Volume of Rotary Bottle : 3L

Volume of Recycling Bottle : 2L

Vacuum Degree : 0.098Mpa

Port : Shanghai, Tianjin, Qingdao

Contact Now

Factory price of industrial evaporator rotary vacuum

Product Description .

Brief Description of Rotary Evaporator

RE-301 industrial evaporator’s maximum capacity is 3000ml, rotate speed is 10-120r.p.m, motor power is 40W. RE-301 industrial evaporator is the basic industrial evaporator series product of Henan Lanphan at present, it has manual up and down handle. The independent developed and elaborate designed machinery and glass components can accurately set the location of glass component. The digital display rotate speed and heating kettle’s temperature helps you optimally control all distillation process. New type fixation system greatly simplified the operation process of changing evaporating flask.

Electric 40W 3000ml Industrial Rotovap Machine

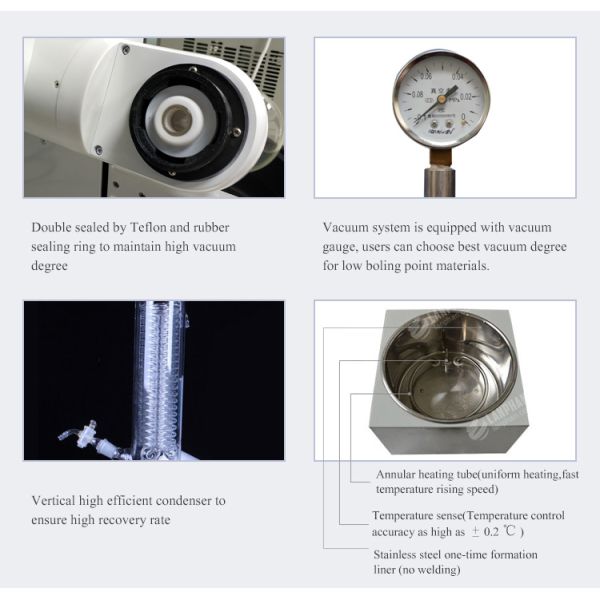

Product Display .

Electric 40W 3000ml Industrial Rotovap Machine

If you are interested in this product, pls send me inquiry Contact Supplier

Basic Parameter	Type	RE-301
	Glass Material	GG-17
	Support Material	Stainless Steel
	Shell Material	Antisepsis Plastic Spraying 290296240mm
	Inner Container Material	Stainless Steel 255*170mm
	Baseboard Size	350*330mm
	Volume of Rotary Bottle	3L ¢50 flange aperture
	Volume of Recycling Bottle	2L 35# ground aperture
	Vacuum Degree	0.098Mpa
	Rotating Power	40W
	Rotating Speed	0-120rpm
	Heating Power	2KW
	Temperature Control Range of Bath Kettle	400℃
	Temperature Accuracy	±1℃
	Voltage/Frequency (V/Hz)	220V/50Hz
	Up and Down Distance	120mm
	Shape Size(mmmmmm)	700440885
	Package Size(mmmmmm)	1000460460 0.12 m³
	Package Weight (KG)	38
Function Allocation	Speed Adjustment Mode	Electrodeless Speed Regulation
	Rotate Speed Display Mode	Digital Display
	Temperature Display Mode	Digital Display K Type Sensor
	Temperature Control Mode	Smart Temperature Control
	Sealing Mode	PTFE Sealing
	Condenser	Vertical Condenser 100*510mm 29#Standard Aperture
	Up and Down Mode	Manual Up and Down of Bath Kettle
	Continuous Charging	19#Standard Aperture Feeding Valve
	Vacuum Display Mode	Vacuum Meter
Optional Equipping	Anti-splash Device	Equipping Transparent Cover of Bath Kettle
	Anti-explosion	Anti-explosion Frequency Changer, Anti-explosion Dynamo EX40W
	Frame Part	Plastic Spraying or PTFE Spraying
Our company's laboratory glass and laboratory instruments are independent research and development, available for custom-made according to client requirements.

Packing List of Rotary Evaporator

Host	1	Rotary Bottle	1
Electric Cabinet	1	Recycling Bottle	1
Special Sealing Ring	1	Condenser Pipe	1
Sealing Gasket	1	Suction Pipe	1
Bottle Clamp	2	Charge Pipe	1
Protective Pipe 3A	1	Protective Pipe	1
Thermostat Water Bath Kettle	1	Special Components (additional Purchase)	1

Corollary Equipment .

Electric 40W 3000ml Industrial Rotovap Machine

1. Rotary evaporator matching use with circulating water vacuum pump to offer a vacuum environment for reduced pressure distillation, they are widely used for vacuum filtration, vacuum evaporation, vacuum degassing, etc..

2. Rotary evaporator matching use with GDSZ series high and low temperature circulating pump to quickly cooling or warming, the circulating pump is an efficient equipment for quick temperature adjustment.

3. Rotary evaporator matching use with DLSB series low temperature cooling liquid circulating pump to conduct chemical reaction and medicine storage which requires low temperature environment.

Workshop .

Electric 40W 3000ml Industrial Rotovap Machine

For more information, please contact us

Contact Supplier

Electric 40W 3000ml Industrial Rotovap Machine

Contact us

for more details about price, packing, shipping and discount.

Tel: 86-371-67447999

Web: http://www.rotovap.cn

Address: Jianshe Road, Zhongyuan District, Zhengzhou,
Henan, China

Q: What’s the difference between vertical and inclined condenser?

A: They have no difference essentially. Vertical condenser is gradually popular because of its small space usage and convenience for transportation and use. Most high-capacity instruments use vertical condenser.

Q: What factor decides the working efficiency of industrial evaporator?

A: For same type equipment, mainly includes: steam temperature, vacuum degree and cooling water temperature. Restricted by some material’s thermolability, the steam temperature may have certain limitation when working, so high vacuum degree and low cooling water temperature are two main factors for efficiency improving.

Q: How to select all kinds of rotary evaporator?

A: As for structure, our R series products all have excellent corrosion resistance ability and leakproofness ability. According to the solvent volume, 2L, 3L, 5L’s machine is fit for lab and sample test; 5L, 10L, 20L’s machine is fit for medium experiment; 20L, 50L’s machine is fit for medium experiment and production, especially suitable for the extraction of metal ionavoiding polluted material.
