6 Trays Vacuum Freeze Drying Equipment Large-Scale Production Freeze Dryer In Food Industry

  • 1
  • 2
  • 3

Brand Name : Lanphan

Model Number : HFD-20

Certification : CE

Place of Origin : China

MOQ : 1 Unit

Price : $5970/pc

Payment Terms : L/C, T/T, Paypal...

Supply Ability : 500 Units per Month

Delivery Time : 3-7 work days

Packaging Details : wooden box package

Type : Production Freeze Dryer

Capacity : 25kg/h

Condition : New

Power(w) : 4500W

Cold trap temperature : -55 degree

Vacuum degree : less than 2Pa

Voltage : 110v/220v/380v/50Hz

After-sales service provided : Online support

Application : Food Processing,Laboratory,Food or lab freeze drying

Contact Now

6 trays Vacuum Freeze Drying Equipment Large-Scale Production Freeze Dryer In Food Industry

Production Freeze Dryer principle and process

The principle of vacuum freeze drying is to remove water through sublimation and collect water through condensation. The vacuum freeze drying process is divided into three stages: (product freezing stage, primary freeze drying stage, secondary freeze drying stage, residual moisture <1%)

Advantages of Production Freeze Dryer

Remove more moisture

One of the main reasons for removing moisture from food is to prevent the spread of mold and bacteria. All living organisms need moisture to thrive. Therefore, by reducing the moisture content, it becomes almost impossible for them to survive. Most home dehydrators can remove about 90 to 95 percent of the water in food.

Better nutritional content

Drying foods does not change the fiber or iron content. However, many vitamins and minerals begin to degrade at high temperatures. Freeze-dried foods retain more of these valuable vitamins and minerals.By comparison, freeze drying will remove up to 98 to 99 percent of moisture content...

Production Freeze Dryer Parameter

Model HFD-9 HFD-10 HFD-15 HFD-20 HFD-25
Tray space 0.9m2 1m2 1.5m2 2m2 2.5m2
Cold trap temperature -55ºC
Ultimate Vacuum <2pa
Power supply 220V/50HZ can be customized 110V or 380V
Processing capacity(kg/batch) 12-14 14-15 15-20 25-26 29-30
Material tray size 200*425mm 309*780mm 270*780mm 390*900mm 390*900mm
Number of trays 10pcs 4pcs 7pcs 6pcs 7pcs
Layer Spacing 35mm 65mm 40mm 40mm 48mm
Capture water volume 12KG/24H 12KG/24H 18KG/24H 26KG/24H 30KG/24H
Overall power 2300W 3000W 3000W 4500W 4500W

Production Freeze Dryer Description

6 Trays Vacuum Freeze Drying Equipment Large-Scale Production Freeze Dryer In Food Industry

Production Freeze Dryer Details

6 Trays Vacuum Freeze Drying Equipment Large-Scale Production Freeze Dryer In Food Industry

Production Freeze Dryer Size

6 Trays Vacuum Freeze Drying Equipment Large-Scale Production Freeze Dryer In Food Industry

Production Freeze Dryer Parts

6 Trays Vacuum Freeze Drying Equipment Large-Scale Production Freeze Dryer In Food Industry

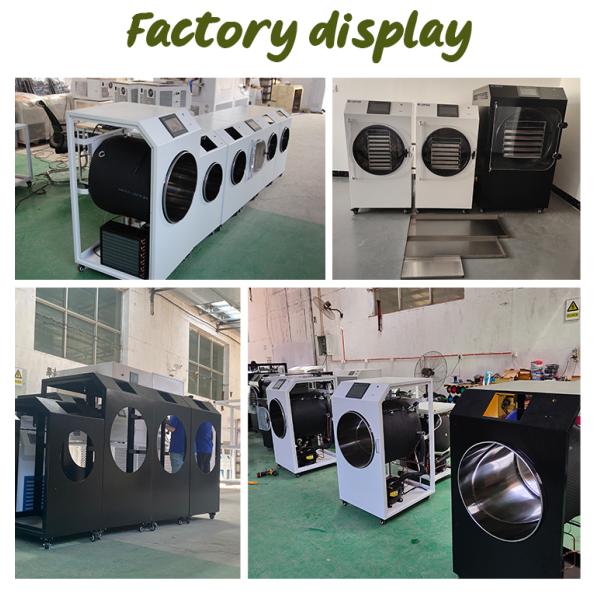

Production Freeze Dryer Factory

6 Trays Vacuum Freeze Drying Equipment Large-Scale Production Freeze Dryer In Food Industry
